1400 X 900 Wet Room Pack With 600mm Linear Waste

1400 x 900 Wet Room – Chrome (1000mm Screen, Tray Former, 600mm Linear Waste with Tileable Cover Plate + Installation Kit)

Create a sleek showering area with one of our wet room packages, features a 8mm-thick glass screen, square support arm, tray former, 600mm linear shower waste with tileable cover and installation kit.

Ideal for creating a wet room in a typical UK timber floor, the supplied tray former gives the correct gradients falling towards the shower waste for effective discharging of waste water.

The tray can be finished with a tile of your choice – either standard tiles cut to the fall of the drain, or decorative mosaic tiles (not included).

The installation kit includes an easy to install waste to be used in conjunction with all Linear shower tray formers. Specially designed to enable water to flow from the shower tray at a rate of 42 litres per minute. Features a tileable drain cover plate.

For installations where the shower waste must be installed above the floor the Orion Wetroom Shower Substrate must be used in conjunction and is sold separately.

Glass Screen Details

• Height: 1850mm
• Width: 1000mm
• Adjustment: 975-993mm
• Polished Chrome Profile
• Frameless Design
• 8mm Toughened Safety Glass – Stronger and safer for your peace of mind
• Comes with a Square Stainless Steel Support Arm
• Lifetime Guarantee

Tray Former Details

• Dimensions: 1400 x 900mm
• Thickness: 30mm
• End waste position
• Linear 600mm end drain
• Can be used on timber floors
• Waterproof coated
• Ready for tiling
• Can be tiled with any size tiles
• Suitable for level access installation
• Can be trimmed down (max. 100mm)
• Suitable for domestic and commercial use
• Easy to install
• 15 Year guarantee

Shower Waste + Wetroom Installation Kit Details

• 600mm Linear Wetroom Shower Waste with Tileable Cover Plate
• Linear Drain Cover Plate: 597x40mm
• Tileable cover plate
• High flow waste trap 42 l/min
• Easy to install
• For use with Orion Linear trays only
• Includes trap kit
• Supplied with Complete installation kit
• Required for use with all Orion tray formers and substrates
• 15 Year Guarantee

Images are for illustration purposes only

All measurements are approximate

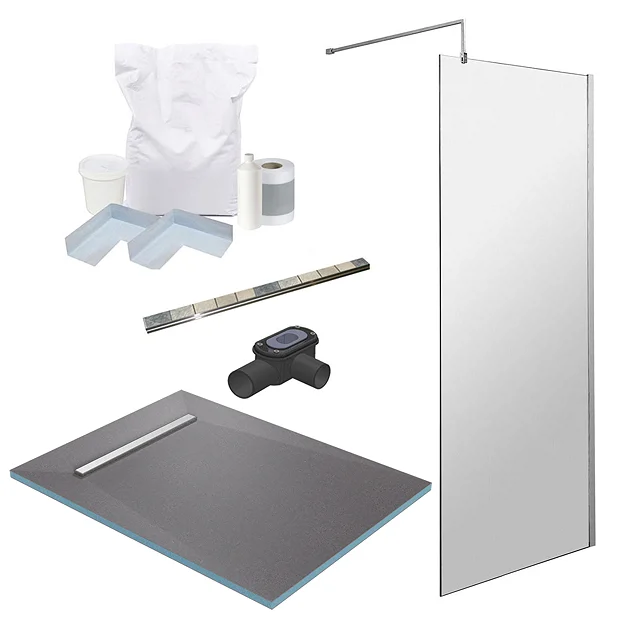

Package comprises of:

1 x H1850 x W1000mm Wetroom Screen (Inc. Chrome Profile + Support Arm)
1 x Linear Wetroom Rectangular Shower Tray Former (600mm End Waste – 1600 x 900 x 30mm)
1 x 600mm Linear Wetroom Shower Waste with Tileable Cover Plate
1 x 5kg Fixing Adhesive
1 x 5m Waterproofing Tape
2 x Internal Corners
1 x 250ml Wood Floor Primer
1 x 500ml Tanking Membrane
