Arezzo Chrome Industrial Style Push Button Shower Valve With Diverter, Handset, Fixed Shower Head + 4 Body Jets

Arezzo Chrome Industrial Style Push Button Shower Valve with Diverter, Handset, Fixed Shower Head + 4 Body Jets

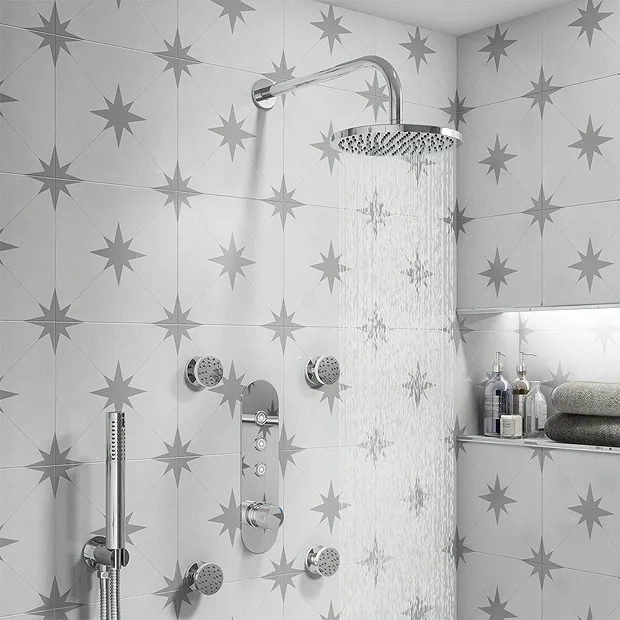

Bring elegance to the modern bathroom with this Arezzo Chrome Industrial Style Push Button 3 outlet complete shower. The package includes a concealed push button shower valve with integrated diverter, handset, fixed overhead shower head and 4 round body jets. The stylish concealed shower valve offers thermostatic showering via three easy-to-operate controls, operates two shower accessories separately or simultaneously and diverts to a third option. The solid brass construction makes the valve durable and quick to clean thanks to the smooth finish. The ideal solution for multi-option showering.

Shower Valve Details

• Height: 305mm
• Width: 80mm
• Type: 1-Touch Smart Control Shower Valve
• Outlets: 3

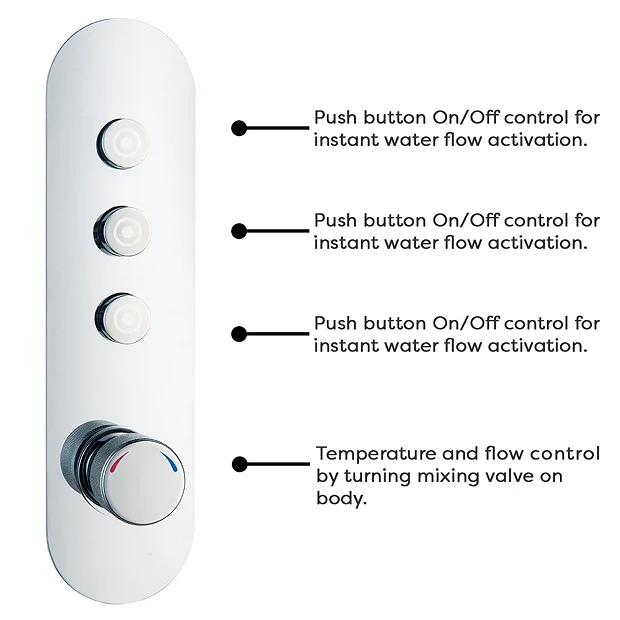

• Easy to use – Push button flow control for 3 outlets
• Industrial-style detailing thermostatic control handle

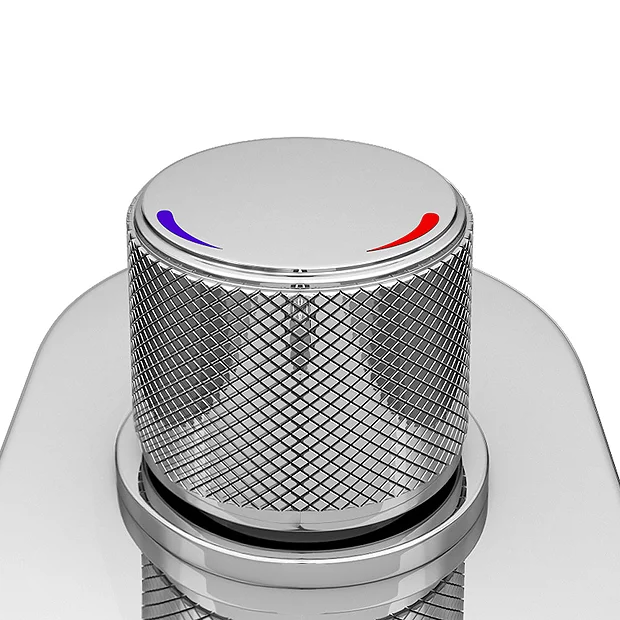

• Circular handle with a tactile knurled grip
• Push button On/Off control for instant water flow activation
• Temperature/Flow control by turning mixing valve on body
• Style: Modern
• Colour/Finish: Polished Chrome
• Valve Handles: Round
• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Oval Faceplate
• Suitable for modern pressurised plumbing systems
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump.

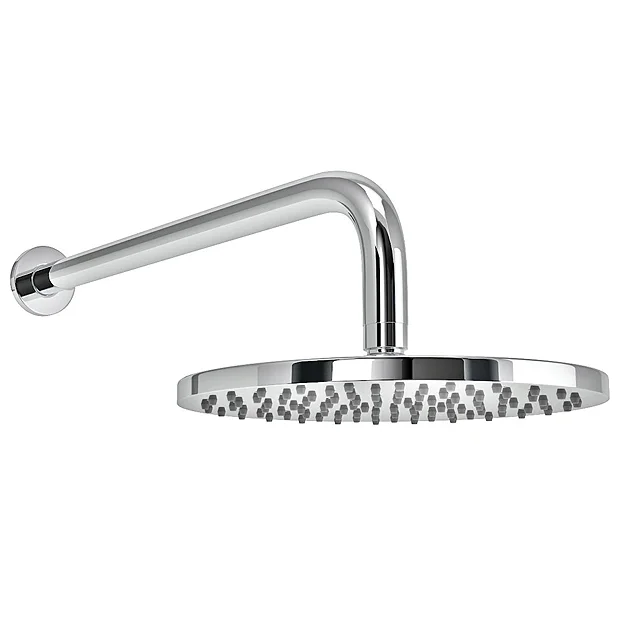

Shower Head + Wall Mounted Arm Details

• Shower head dimensions: 200mm diameter
• Shower arm length: 345mm
• Style: Modern
• Shape: Round
• Colour/Finish: Chrome
• Water Pressure: 0.5 bar min to 3 bar max
• Supplied with swivel joint and wall mounted round arm
• Shower head chrome plated plastic, not metal

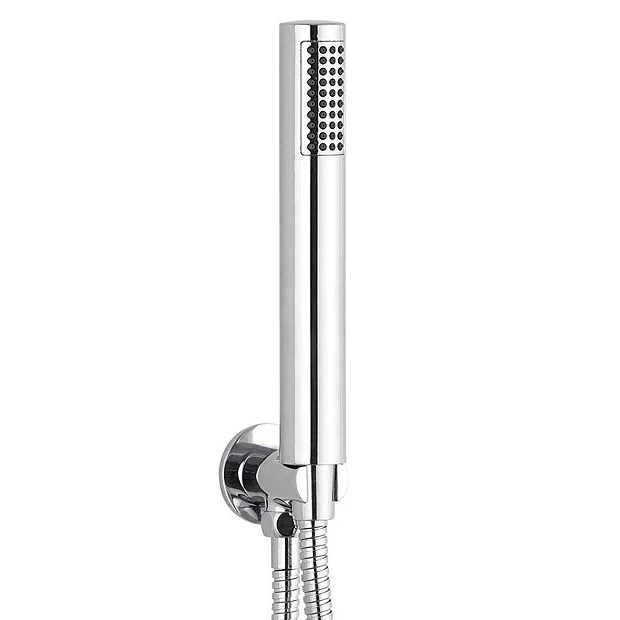

Shower Handset Details

• Depth: 66mm
• Height: 244mm
• Width: 50mm
• Shape: Round
• Colour: Chrome
• Manufactured To The Highest Standards
• Handset with Built in Outlet
• Suitable for all plumbing systems
• 1.5m Shower flex –  Brass / Chrome plated
• Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Handset – ABS plastic / Chrome plated
• Rust resistant hose
• Highly polished finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away

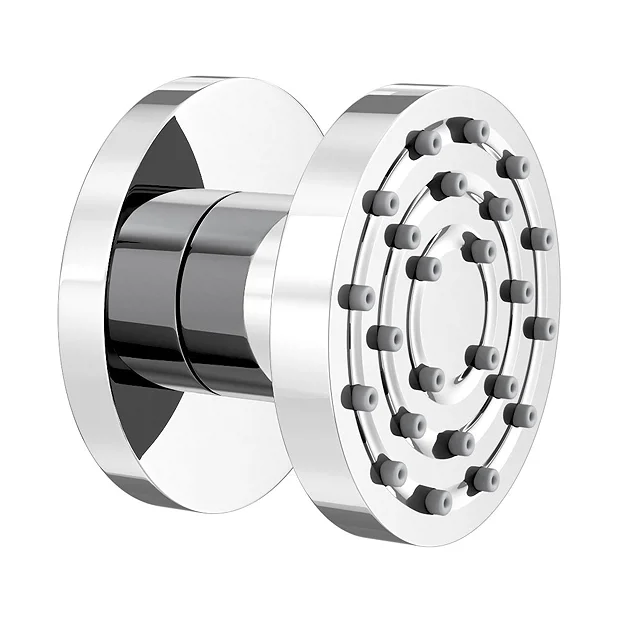

Body Jet Details

• Overall Size: D64 x W55 x H55mm (Approx.)
• Shroud ring: 55mm diameter
• Brass 1/2 inch BSP thread: 25mm long
• 24 rubber nozzles (12 functional)
• Colour/Finishes: Polished Chrome
• Material: Brass
• Product Type: Slim Round Body Jet
• Supplied with swivel joint
• Silicone nozzles mean that any limescale deposits can simply be rubbed away

*Installation requires rear access behind the wall.

All measurements are approximate

Product images are for illustration purposes only

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges, 2 year on coloured finish)

Comprises

(1) Arezzo Chrome Industrial Style 1-Touch Push Button Smart Control Concealed Shower Valve (3 Outlet)
(1) 200mm Fixed Round Shower Head
(1) Round Shower Arm
(1) Round Outlet Elbow with Parking Bracket, Flex & Handset
(4) Slim Round Body Jet – Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
