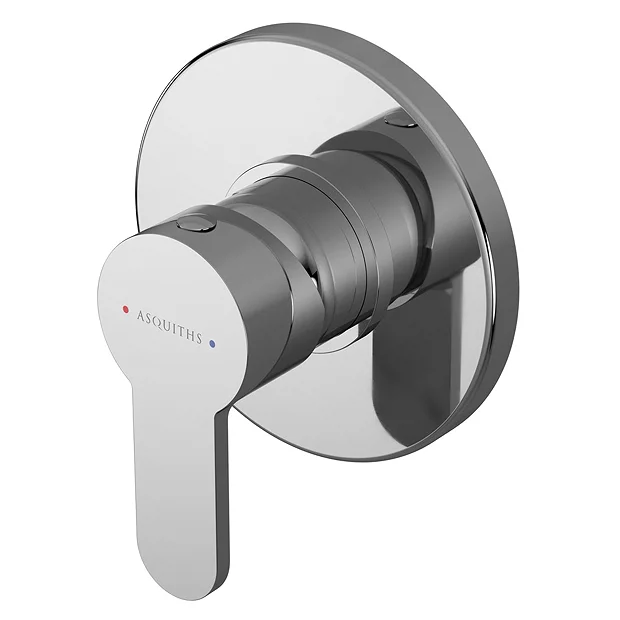

Asquiths Sanctity Manual Concealed Shower Valve

Asquiths Sanctity Manual Concealed Shower Valve – SHA5111

A place of sanctuary that restores and revives. Within this collection are delicate lines, each item combining with others in the collection to create your very own sanctity. The unique curves of this valve will create a calming contemporary focal point in any bathroom.

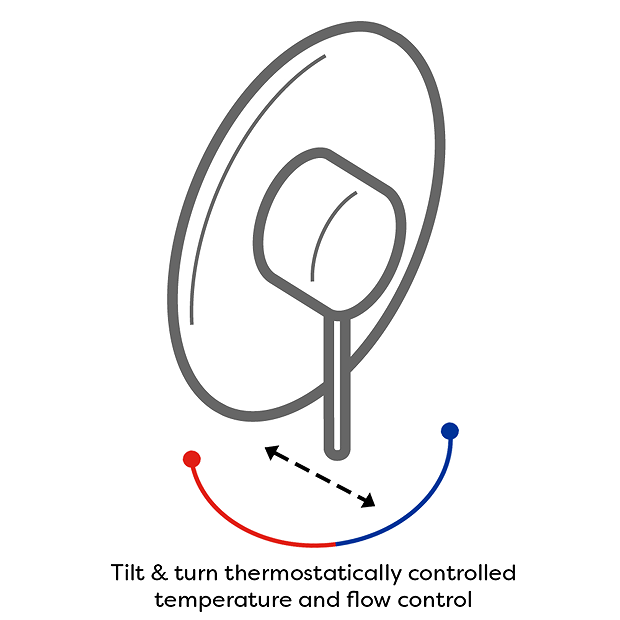

The sleek stylish handle controls temperature and flow. Simply lift lever to introduce flow, adjust left or right to set temperature. Operates one bath / shower accessory – bath spout, slide rail kit or shower head.

Product Details

• Width: 110mm
• Height: 126mm
• Depth: 113mm
• Finish: Chrome
• Manufactured from high quality brass/ABS
• Type: Manual Concealed Shower Valve
• Brand: Asquiths
• Product Code: SHA5111
• Style: Contemporary
• Range: Sanctity
• Concealed
• Round Faceplate
• Water Outlet: 1
• Single lever ceramic disc technology for long life and smooth operation
• Excellent flow rates – even at low pressures
• Min operating pressure: 0.5 bar (3 bar if using Bath Filler)
• Max operating Pressure: 5 bar
• Inlet & outlet connections are all 1/2″ BSP female threads.
• Designed & built in Britain

Guarantee: 20 Years

Flow Rates

0.1 Bar – 3.4 l/m
0.5 Bar – 7.9 l/m
1 Bar – 11.2 l/m
2 Bar – 15.9 l/m
3 Bar – 19.5 l/m
