Cruze Round Top Outlet Thermostatic Bar Shower Valve

Cruze Round Top Outlet Thermostatic Bar Shower Valve

If your shower runs hot and cold when you’re using water elsewhere in the house, this Cruze Thermostatic Bar Shower Valve could be just what you need. The beauty of thermostatic showers is that they deliver both safety and comfort by keeping the temperature constant. Simple to operate, there are two controls for heat and flow. There’s also a handy anti scald function, maintaining a warm 38° unless adjusted so it’s suitable for even the younger members of the household. Top off this valve with the Nuie Telescopic Riser Kit with Round Shower Head for a modern flourish.

Product Details

• Width: 270mm
• Depth: 79mm
• Height: 40mm
• Style: Modern
• Range: Bar Showers
• Handles: Round
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Top Outlet
• Thermostatically controlled
• Built-in anti-scald device

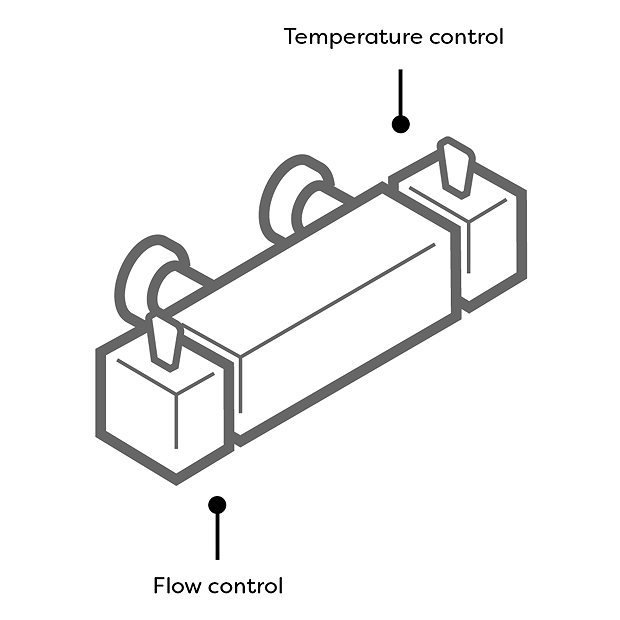

• Separate controls for temperature and flow
• Easy installation
• Built in anti-scald device
• Factory pre-set temperature 38°
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Product images for illustration purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
