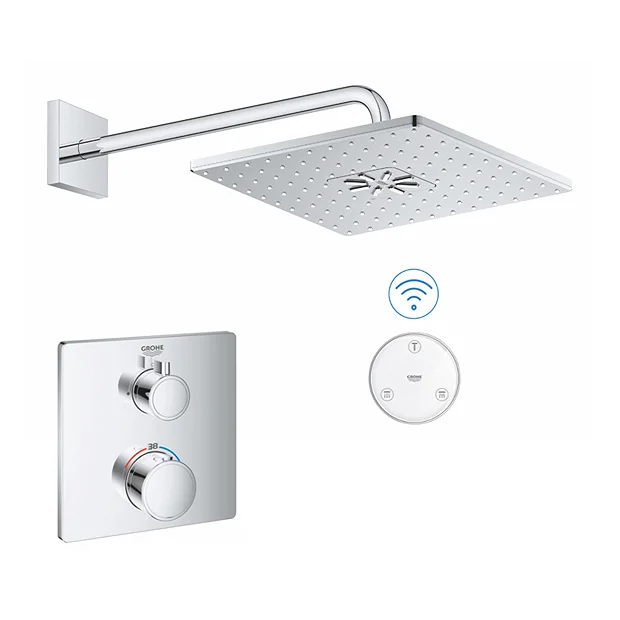

Grohe Grohtherm SmartConnect Square Shower Set

Grohe Grohtherm SmartConnect Square Shower Set

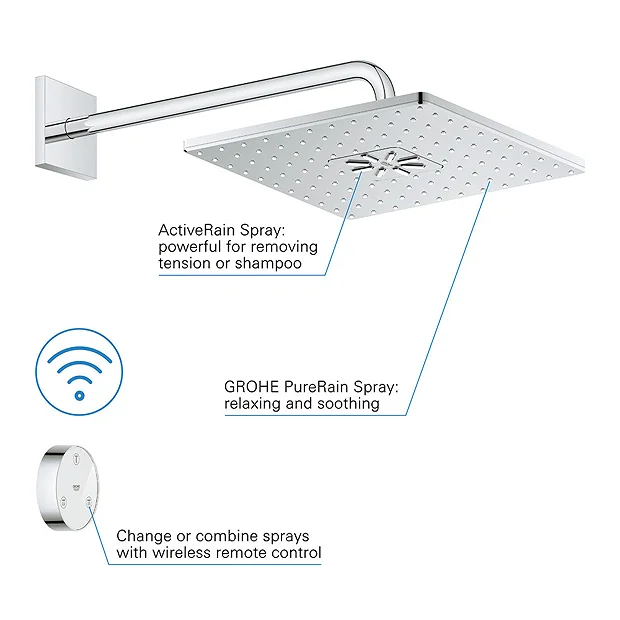

This complete Grohtherm SmartConnect square shower set from Grohe offers a showering experience with comfort and convenience. Switch between or combine two spray patterns without having to reach up to the shower head thanks to the wireless remote control, which can be placed anywhere. The head shower has two different spray patterns – the gentle, relaxing GROHE PureRain spray and the invigorating GROHE ActiveRain, strong enough for rinsing out shampoo and targeted enough to offer a stimulating head, neck and back massage. These spray patterns can be used individually, or combined.

For perfect comfort and safety, the integrated GROHE TurboStat technology prevents unpleasant temperature fluctuations while the SafeStop button protects your sensitive skin from scalding, and thanks to the GROHE CoolTouch system, the shower valve body will never be too hot to touch.

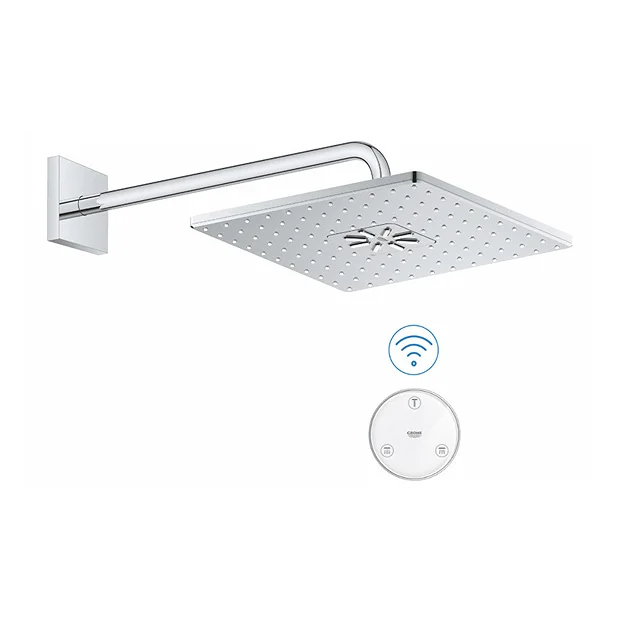

Shower Head & Arm Details

• Finish: Chrome
• Product Code: 26642000
• Chrome spray plate
• 2 spray patterns: GROHE PureRain, ActiveRain
• Default spray type programmable
• With square escutcheon

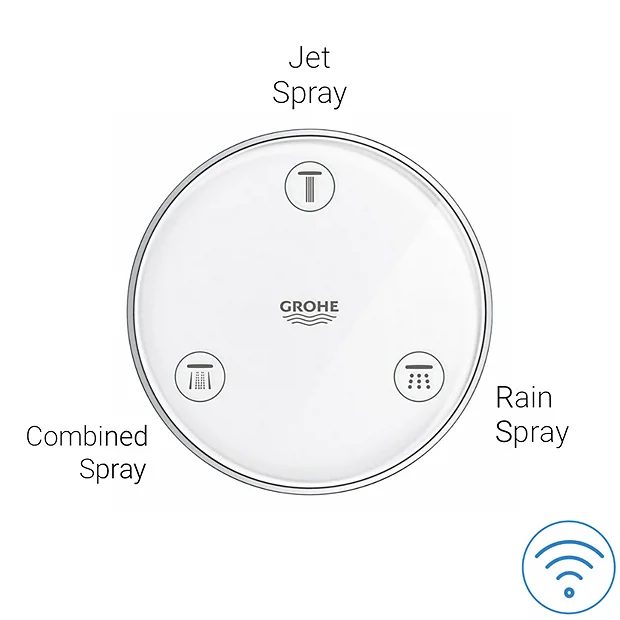

• Change or combine spray patterns with remote
• Screw or glue holder to wall
• Battery powered: includes 3 x AAA batteries and 1 x CR 2032 button cell
• LED indicator for pairing and battery change
• Water resistant remote control rated IP57
• GROHE EcoJoy 9.5 l/min flow limiter
• GROHE DreamSpray perfect spray pattern
• GROHE StarLight chrome finish
• SpeedClean anti-limescale system
• Inner WaterGuide for a longer life
• Suitable for instantaneous heater
• Min. recommended pressure: 1.5 bar

Shower Trim Details

• Product Code: 24078000
• Finish: Chrome
• GROHE TurboStat compact cartridge with wax thermoelement
• GROHE StarLight chrome finish
• Wall escutcheon with GROHE QuickFix
• Metal escutcheon, retroactively 6° adjustable
• GROHE SafeStop safety button at 38°C (calibration required)
• GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C
• Included built-in non return valve and dirt strainers
• Ceramic stop valve, 120°
• Flow performance: outlet B = 27 l/min, outlet C = 30 l/min

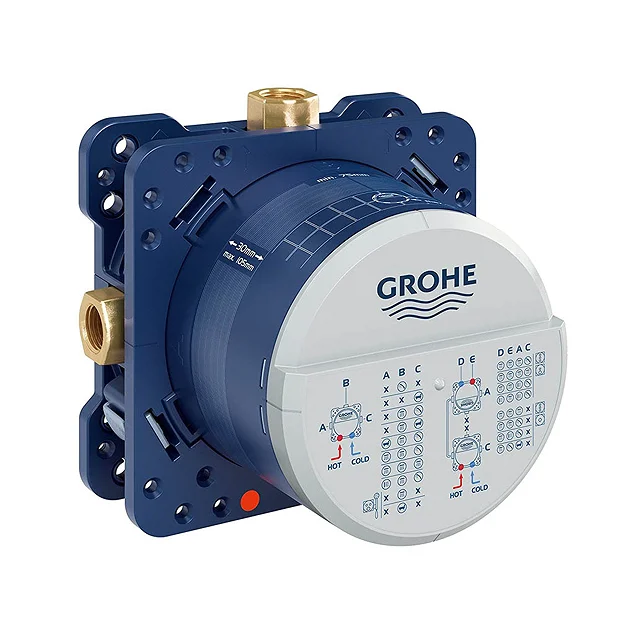

Rough-in Box Details

• Product Code: 35600000
• 3 outlets 1/2″
• 2 inlets below, 1/2″
• Installation depth 75-105mm
• Connection unit in DR brass
• Pre-mounted flushing plug
• Stable build-in box and protective cover
• Fixing options for solid walls and dry cladding
• Operating Pressure: Max. 10 bar
• Gasket
• Without set for final installation

5 Year Guarantee

Comprises

(1) Rainshower SmartConnect Cube 310 Showerhead
(1) 422mm Wall Mounted Shower Arm
(1) Wireless Remote Control
(1) Batteries (3x AAA, 1x CR2032)
(1) Rapido SmartBox Universal Rough-in Box
(1) Grohtherm 1-Outlet Thermostatic Shower Mixer Trim with Shut-Off Valve
