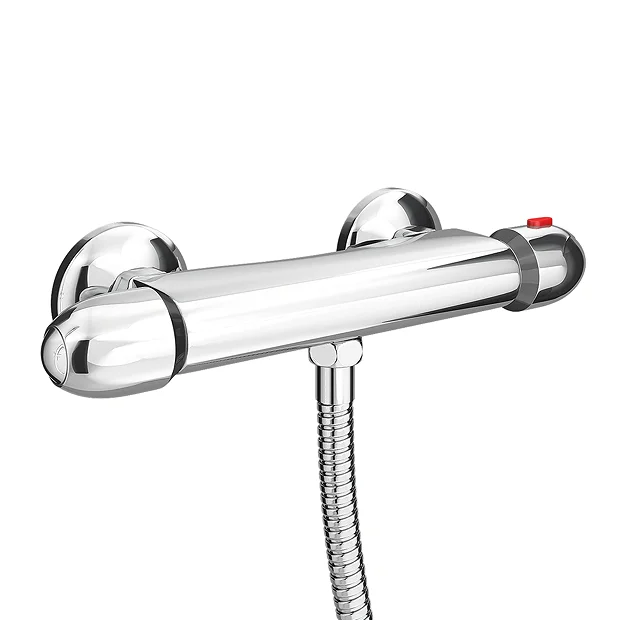

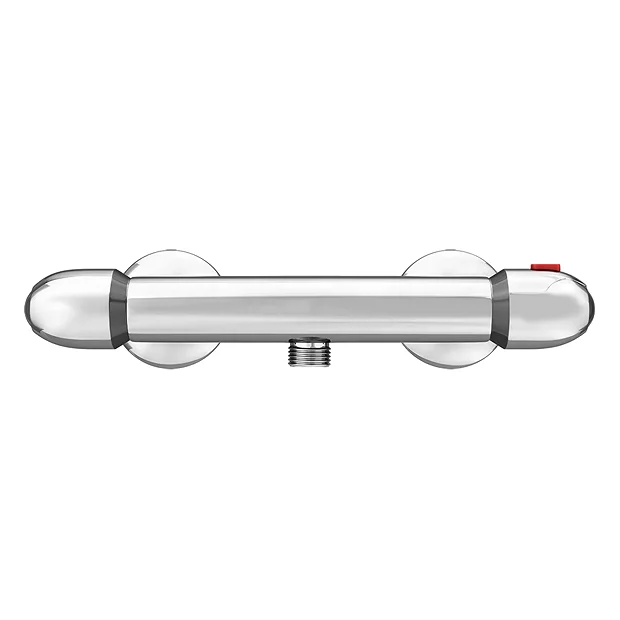

Juno Round Thermostatic Bar Valve – Chrome

Juno Round Thermostatic Bar Valve – Bottom Outlet – Chrome

This Exposed Thermostatic Bar Shower Valve is part of our contemporary collection of bathroom products. Modern styling with chrome finish and constructed from solid brass. Thermostatic showers prevent a fluctuation in temperature whilst the shower is running – prevents the risk of scalding, or sudden cold spells. The valve is pre-set to a safe and optimal 38°C, this can be easily offset by holding down the safety push and click button on the handle.

Product Details

• Width: 284mm
• Depth: 45mm
• Height: 40mm
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Modern Design
• Bottom Outlet

• Thermostatic shower control valve for comfort and safety
• Built-in anti-scald device.

• Durable and dependable
• Ceramic Disc Technology
• We recommend a minimum pressure of 0.5 bar for best performance
• 150mm between pipe inlet centres

• Outlet: 15 mm (1/2″ BSP)

• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

• Flow Rates
• 0.5 Bar – 6.6 l/m
• 1.0 Bar – 12.3 l/m
• 2.0 Bar – 15 l/m
• 3.0 Bar – 16.8 l/m


Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images for illustration purposes only

Does not include shower hose.

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
