Milan 840 X 493mm Curved Heated Towel Rail (incl. Valves + Electric Heating Kit)

Milan 840 x 493mm Curved Heated Towel Rail (incl. Valves + Electric Heating Kit)

With its gleaming chrome finish and understated design, the Milan Curved Profile Heated Towel Rail will create a sleek, minimal look in your space while keeping your towels toasty warm. This wall-mounted, ladder-style towel radiator is just 493mm wide, making it a clever space-saving choice for cloakrooms and en suites. It’s designed to be plumbed into the central heating system, but can also be wired into the electric mains for use in summer when the heating’s off.

Towel Rail Details

• Height: 840mm
• Width: 493mm
• Depth: 69.7mm
• Projection from wall: 90-105mm
• Size, type and position of connections: 1/2″ FI BSP
• Dry Weight: 13kg
• Water Content: 4.1ltr
• BTU T50: 1416
• ∆ Watt T50: 415°C
• Max Operating Pressure: 8 bar
• Colour/Finish: Polished Chrome
• Material: Carbon Steel
• Bars: 10
• Flat Tube Model
• Profile: Curved
• Wall Fixings: 4
• C/C Tappings (distance between pipe centres): 438mm
• Vertical tube: 35 x 1.5mm round tube,
• Horizontal curved tube: 70 x 11 x 1.5mm
• Guarantee: 5 Year

Radiator Valves Details

• Height: 82mm
• Depth: 51mm
• Diameter: 31mm
• Material: Brass
• Finish: Chrome
• Angled Valves
• Comes as a Pair
• Guarantee: 5 Year

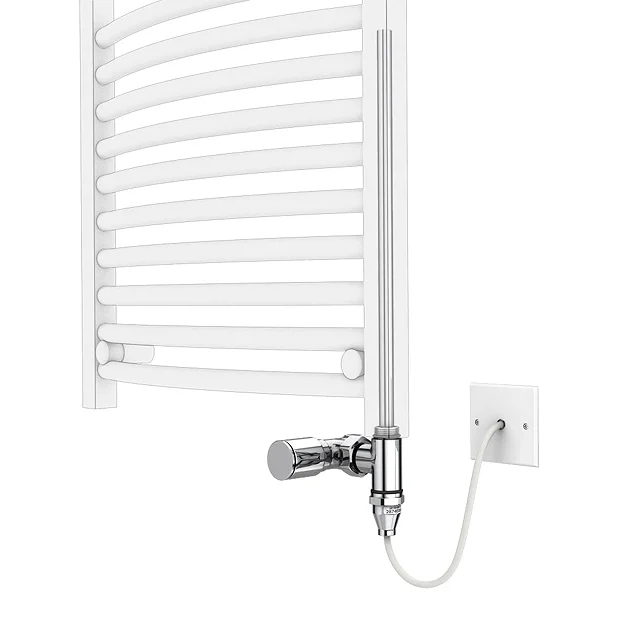

Heating Element Details

• Towel Warmer Heating Element, 400W 1/2″ BSP inc Chrome Tee.
• Length: 440mm
• Fits any 1/2″ BSP wet system towel warmer to give heating on demand when the central heating system is off.
• Ideal for summer use.

Dual Fuel Radiator: Connected to the central heating system, and also to the electric socket.

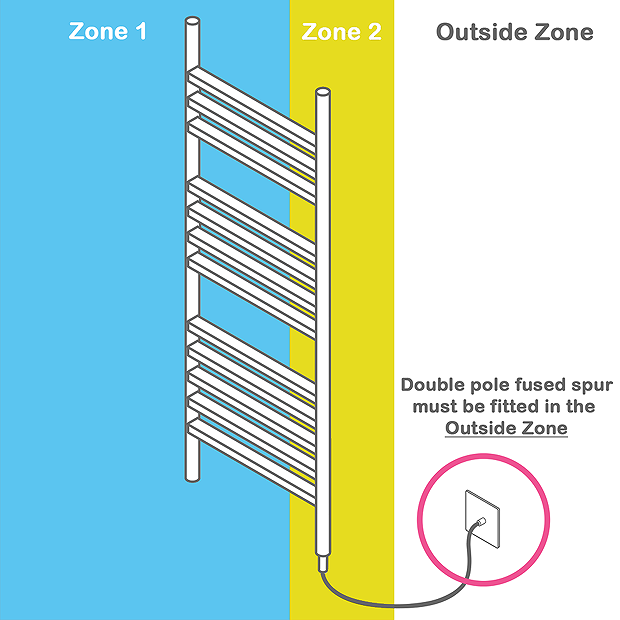

Please note: We recommend using a qualified electrician for installation.

Additional images for illustrative purposes only

*Fused spur sold separately

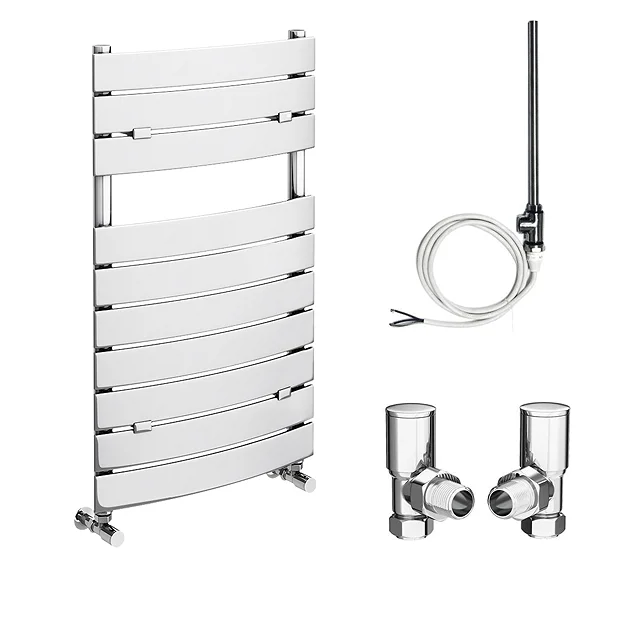

Comprises

(1) Milan Heated Towel Rail – W493 x H840mm – Chrome – Curved
(1) Pair of Modern Angled Radiator Valves – Chrome
(1) 400W Electric Radiator Heating Element + Chrome T-Junction
