Milan Shower Package (inc. 400x400mm Square Rainfall Shower Head + Wall Mounted Handset)

Milan Concealed Shower Package inc. 400x400mm Ceiling Mounted Square Rainfall Fixed Shower Head + Wall Mounted Handset

Bring a cool and contemporary aesthetic to your bathroom or wet room with the Milan Shower Package. The set includes a large rainfall shower head to add a touch of luxury to your space. A concealed 3 outlet shower valve lets you switch between the head and separate handheld shower or use them at the same time. Longing for a blissful shower experience? Use the intuitive handles to tailor the temperature and flow exactly to your liking. Each piece in this set has a simple, angular design and features a gleaming polished chrome finish for a distinctly modern look.

Shower Valve Details

•
  Width: 120mm

•
  Depth: 140mm

•
  Height: 265mm

•
  High Quality Design

•
  Finish: Polished Chrome

•

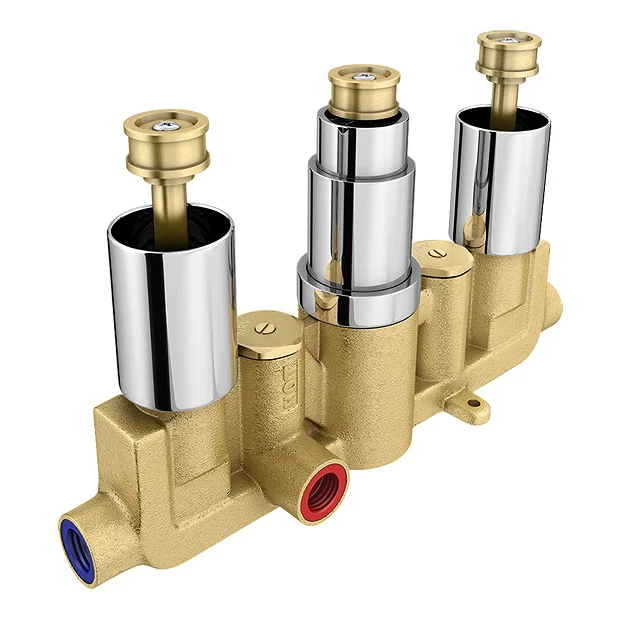

  Material: Brass Internals

•
  Thermostatically controlled

•
  Valve Handles: Square

•
  Rectangular Face plate

•
  Style: Modern

•

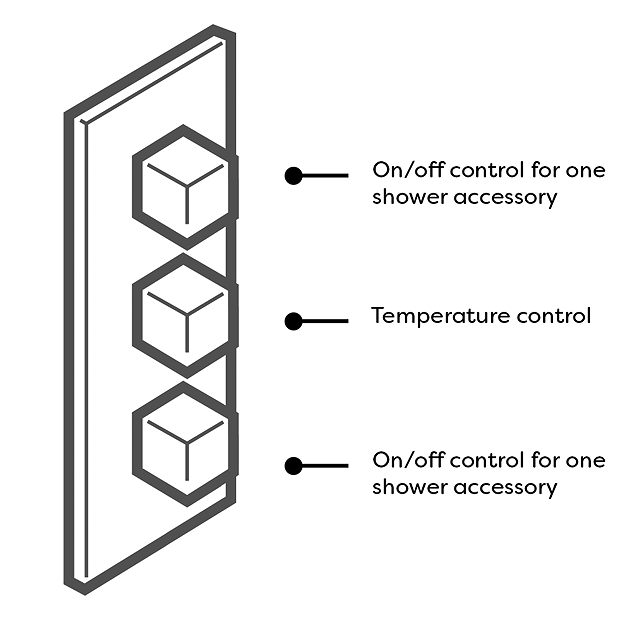

  Operates two points separately or simultaneously

•
  Water Pressure: 0.5 bar to 5 bar

•
  Can be fitted vertically or horizontally

•
  Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

Shower Head Details

•
  Style: Modern

•
  Shape: Square

•
  Colour/Finish: Chrome Effect

•
  Material: Stainless Steel

•
  Dimensions: 400 x 400mm

•
  Thickness/Profile: 2mm (excluding swivel joint)

•
  Pressure requirement: 0.5 bar minimum

•
  Inlet Connections: 1/2″ BSP

•
  Supplied with 360 Degree Swivel Ball Joint

•
  Rub clean nozzles makes this item easy to clean and maintain

Shower Arm Details

•
  Height: 150mm

•
  Finish: Chrome

•
  Product Type: Contemporary

• Ceiling Mounted

•
  Supply: Suitable for all plumbing systems

•
  Inlet Connections: 1/2″ BSP

•
  Working Pressures: Min 0.2bar, Max 8.0bar

•
  Supplied with metal back nut.

•
  Designed to be used in conjunction with shower heads/roses shower valves.

Square Outlet Elbow with Parking Bracket, Flex + Handset Details

•
  Depth: 63mm

•
  Height: 228mm

•
  Width: 40mm

•
  Manufactured To The Highest Standards

•
  Rectangular Handset with Built in Outlet

•
  Suitable for all plumbing systems

•
  1.5m Shower flex – Brass / Chrome plated

•
  Outlet Elbow with Parking Bracket – Brass / Chrome plated

•
  Rectangular handset – ABS plastic / Chrome plated

•
  Rust resistant hose

•
  Highly polished finish

•
  Square handset holder

Pictures for illustrative purposes only

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

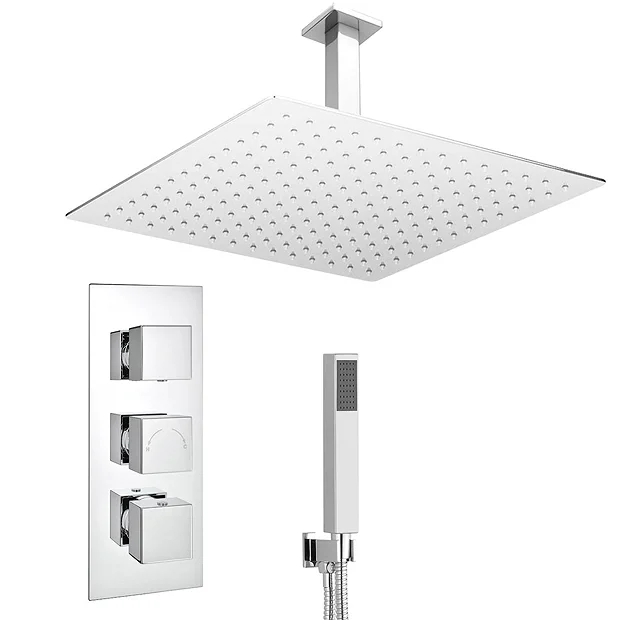

Comprises

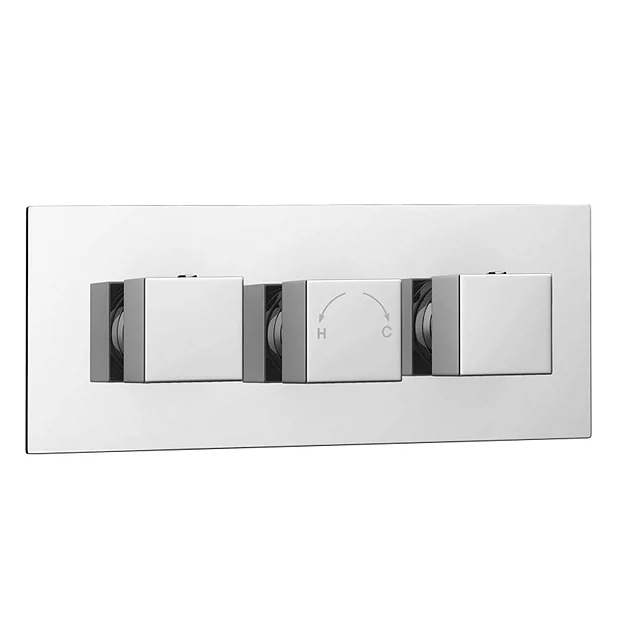

(1) Milan Chrome Triple Square Concealed Thermostatic Shower Valve

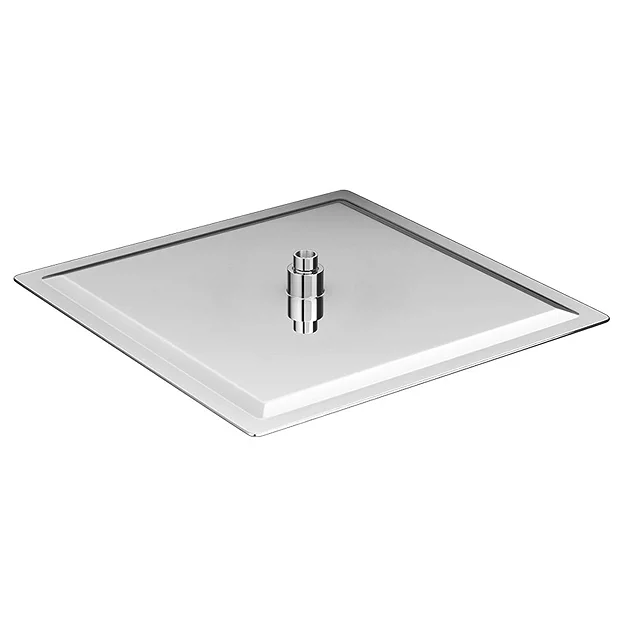

(1) Milan Large Ultra Thin Square Shower Head (400 x 400mm)

(1) Chrome Square Ceiling Fed Shower Arm

(1) Square Outlet Elbow with Parking Bracket, Flex + Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
