Trafalgar Traditional Concealed Individual Diverter + Thermostatic Control Valve With Handset + 8″ Shower Head

Trafalgar Traditional Concealed Individual Diverter + Thermostatic Control Valve with Handset + 8″ Shower Head

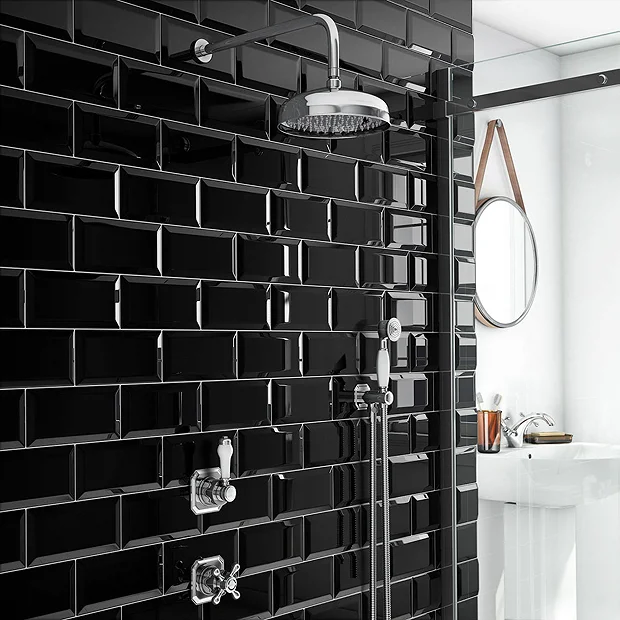

The Trafalgar Concealed Individual Diverter + Thermostatic Control Shower Valve Pack features a Edwardian style bevelled backplate with luxurious crosshead and lever handles. This traditional style shower valve pack is perfect for installing in a concealed arrangement, pack comes supplied with a 8 inch wall mounted fixed shower head and a traditional shower handset.

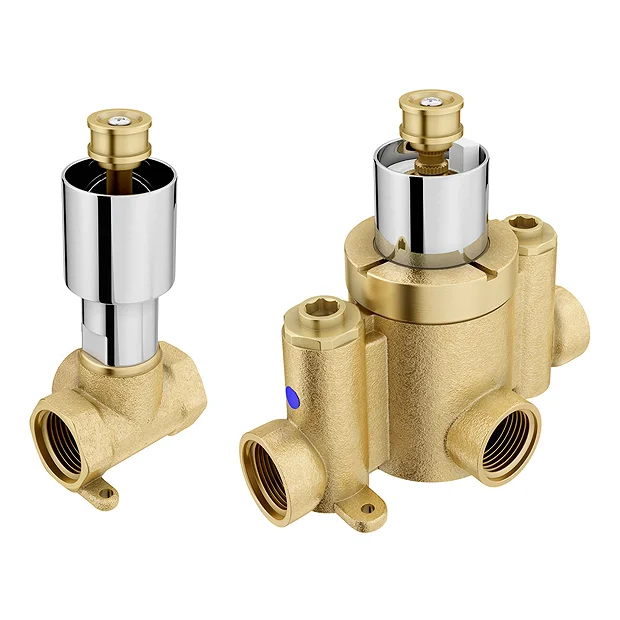

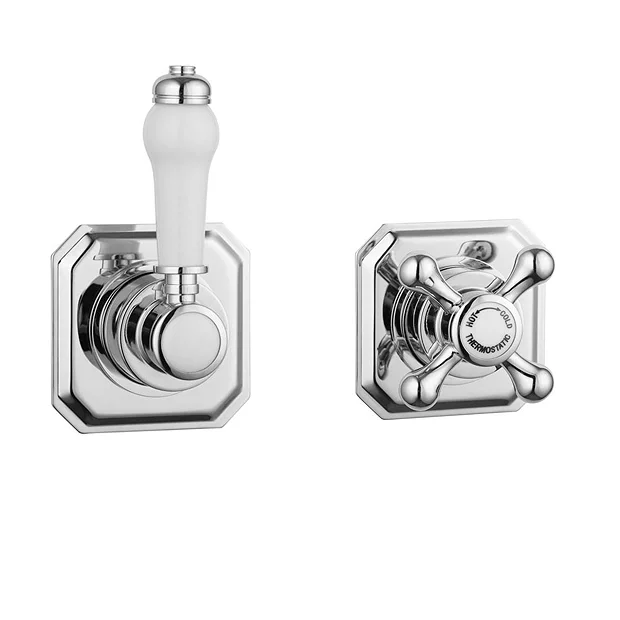

The Trafalgar concealed shower valve consists of two individual controls, for temperature and flow. The brass valve bodies come with chrome plated backplates and handles. This concealed valve has been designed to divert between two shower accessories.

Shower Valve Details

• Diverter Valve: W70 x H70 x D154mm
• Thermostatic Control: W70 x H150 x D154mm
• Backplate: Backplate: 70 x 70mm
• Style: Traditional
• Range: Trafalgar
• Valve Handles: Crosshead and Lever
• Colour/Finish: Chrome Plated
• Material: Brass Internals
• Concealed fitting
• Traditional bevelled backplates
• For use with 2 Outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Pack includes individual thermostatic control with a individual diverter valve for switching water flow between 2 outlets.
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

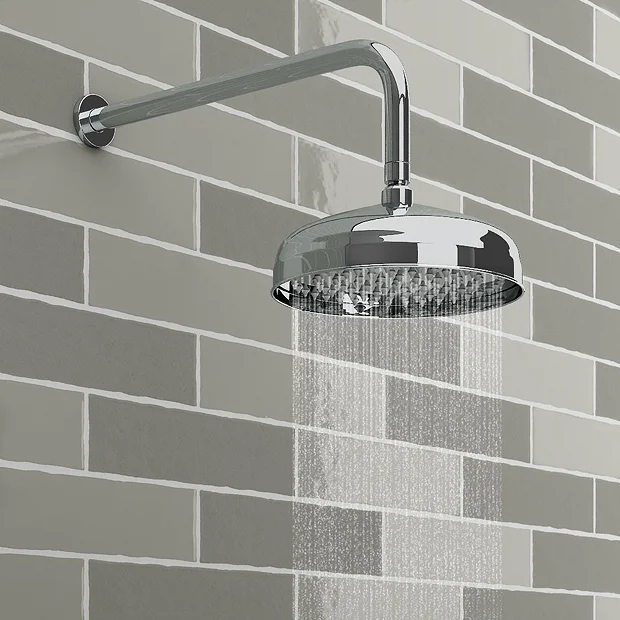

Shower Head Details

• Diameter: 210mm
• Height: 100mm
• Shower Arm Length: 345mm
• With Swivel ball joint
• Style: Traditional
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Pressure requirement 0.5 bar minimum
• Silicone nozzles mean that any limescale deposits can simply be rubbed away
• Installation of the arm requires rear access behind the wall.


Shower Handset Details

• Height: 216mm
• Width: 50mm
• Depth: 98mm
• Finish: Polished Chrome
• Material: Brass Internals
• Style: Traditional
• 1/2″ BSP connections
• Outlet elbow covers unsightly fittings
• Suitable for use with concealed shower valves
• Chrome 1.5m flexible hose
• Wall mounted
• Suitable for water pressure systems of 0.2 bar and above

For further information refer to products installation instructions

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes only

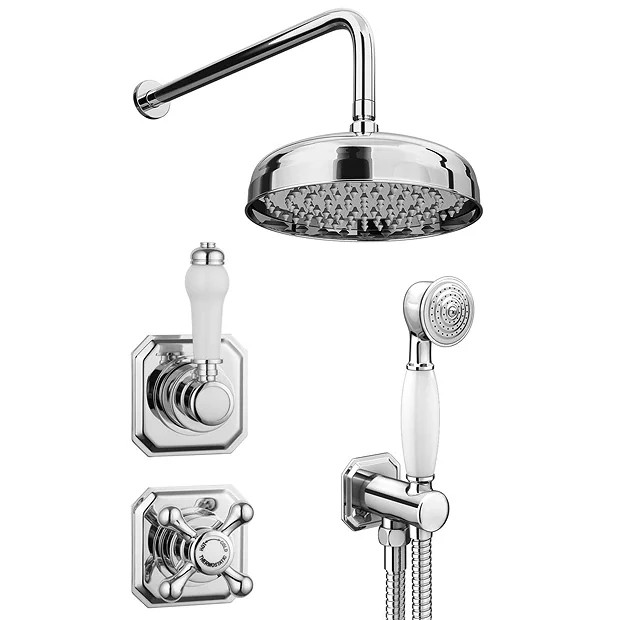

Comprises

(1) Trafalgar Concealed Individual Diverter + Thermostatic Control Shower Valve For 2 Outlets
(1) Belmont Traditional 8″ Apron Rose Shower Head
(1) Chrome 345mm Round Shower Arm
(1) Traditional Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
