Ultra Series L Triple Thermostatic Valve With Square Shower Head + Handset

Ultra Series L Triple Thermostatic Valve with Square Shower Head + Handset

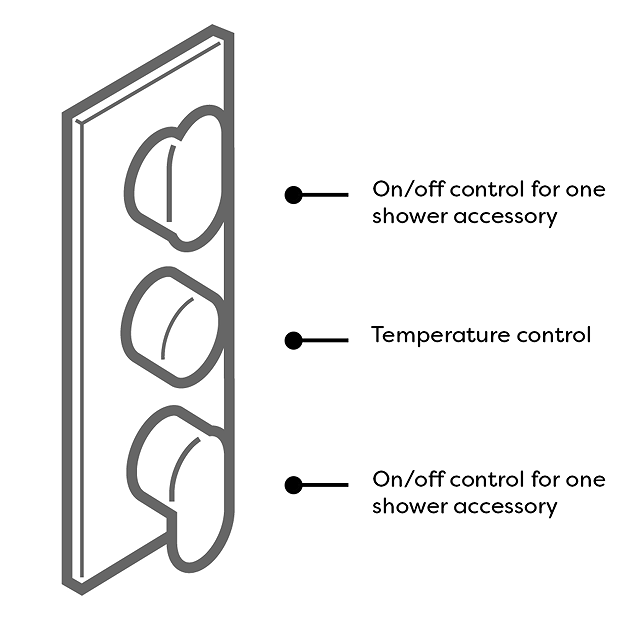

The Series L concealed thermostatic shower valve offers thermostatic showering via three easy-to-operate minimalist square controls. Suitable for all types of plumbing installation this stylish shower valve has separate controls for temperature and flow. Shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Operates two shower accessories separately or simultaneously. Supplied with a 200mm square fixed shower head with swivel joint and a square outlet elbow with parking bracket, flex & rectangular handset.

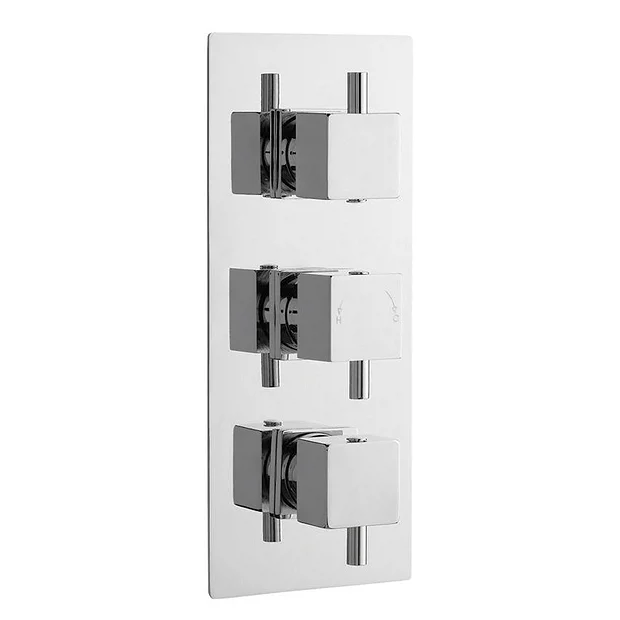

Triple Concealed Thermostatic Shower Valve Details

• High Quality Design
• Finish: Polished Chrome
• Product Code: JTY303
• Thermostatically controlled
• Built in anti-scald device
• Operates two points simultaneously
• Suitable for water systems between 0.1 and 4 bar pressure
• For use with combi boilers & gravity fed systems
• Suitable for unvented mains pressure systems
• Can be used with ether a fixed shower head or slider rail kit
• Manufactured from high quality brass & ABS
• Smooth Operation with Quality Components
• TMV2 & TMV3 approved
• Guarantee: 5 Year

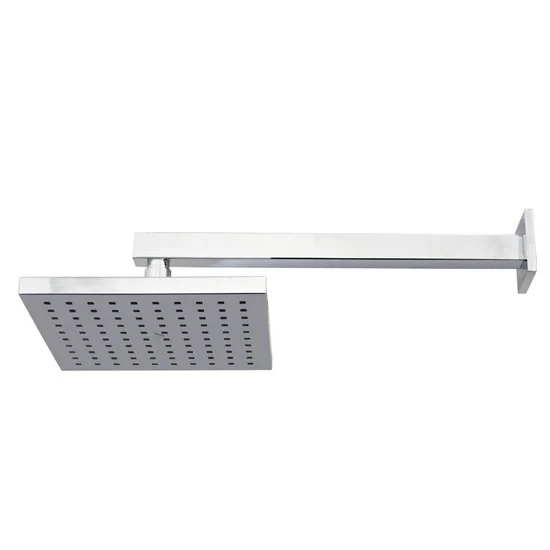

Fixed Square Shower Head with Wall Mounted Arm Details

• Shower head dimensions – 200 x 200mm
• Shower arm length – 354mm
• Style – Modern
• Colour/Finish – Chrome
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted square arm.
• Please note – Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

• Guarantee: 2 Year

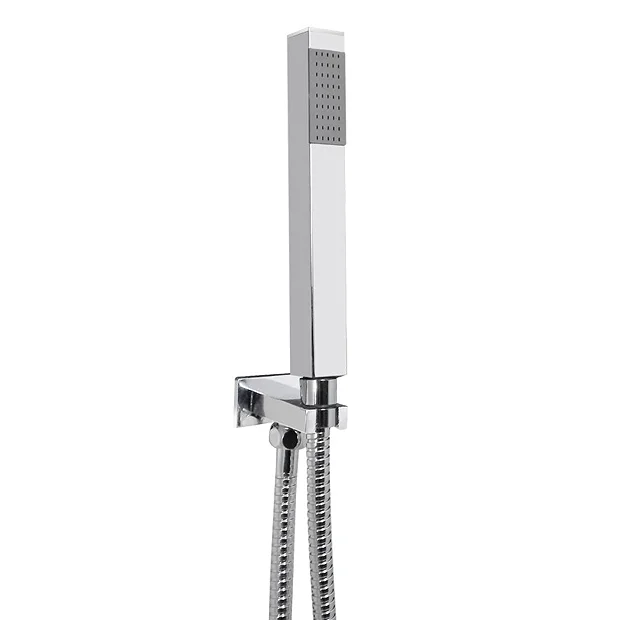

Square Outlet Elbow inc. Parking Bracket, Flex & Handset Details

• Manufactured To The Highest Standard By Hudson Reed
• Rectangular Handset with Built in Outlet
• Suitable for all plumbing systems
• Shower flex –  Brass / Chrome plated
• Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Rectangular handset – ABS plastic / Chrome plated
• Guarantee: 5 Year

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 12 l/m
1.0 Bar – 18 l/m
2.0 Bar – 25 l/m
3.0 Bar – 31 l/m

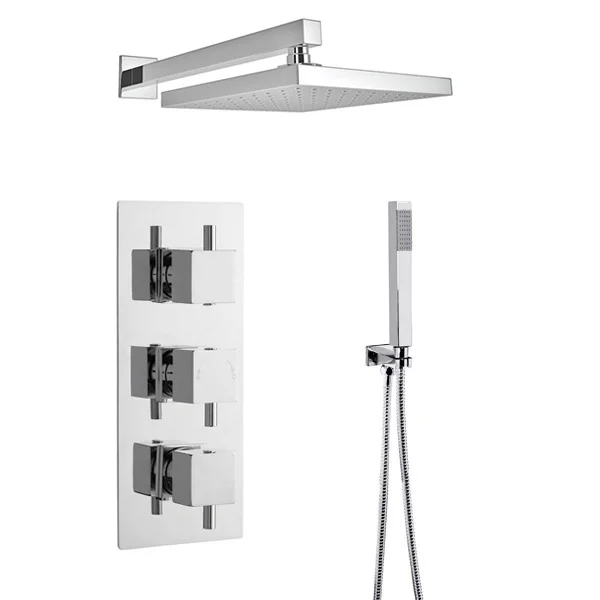

Comprises

(1) 200 x 200mm Square Head – Chrome
(1) Square Shower Arm – Chrome
(1) Square Outlet Elbow with Parking Bracket, Flex & Handset
(1) Triple Concealed Thermostatic Shower Valve
